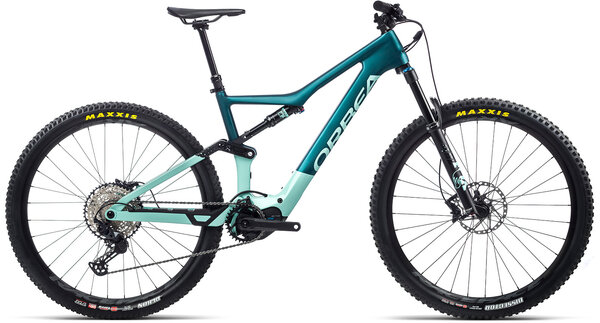

Orbea Rise M20

Orbea Rise M20
  • Color: Coal Blue/Red Gold
  • Color: Ice Green/Ocean
  • Color: Sap White/Green Fog
$6,659.10
$7,399.00
Please select options

Details

RISE BEYOND

A machine designed to expand your trail experience and bring you closer to the moment. Rise brings you nearer the sensation that less "e" delivers more "bike". Whether you crave riding greater distances, reaching more epic locations, improving efficiency or increasing the frequency of your adventures, Rise beyond expectations and discover the new standard in MTB.

RANGE EXTENDER CAGE
The Range Extender cage is also compatible with standard water bottles, so you can optimize the battery/hydration configuration of every ride.

SWITCH & EW-EN100
The simplest configuration consists of a discreet rocker switch near the left brake lever to control assistance level and a small, inline junction box with two tiny LEDs that provides support mode info and smartly broadcasts wireless data.

IT'S THE MOST ADVANCED ALLOY FRAME
Using hydroforming process and triple-butted tubes, we've perfected the wall thickness to save weight and strengthen the stress-bearing zones.

The high polish finishes match the aesthetics of a carbon frame and increase the fatigue resistance on the welds.

RISE H HAS ITS OWN NEW 252WH RANGE EXTENDER THAT GIVES YOU NEARLY 800WH OF TOTAL CAPACITY

THIS IS THE LIGHTEST E-BIKE IN ITS CLASS
Meaning that no other aluminum ebike with this range and power delivery comes anywhere close. This is key, we wouldn't accept anything other than the same playful handling and natural pedaling that riders love with our Rise family.

THE SUPPORT PROVIDED BY THE PROGRESSIVE RATE ALONG WITH THE ANTI-SQUAT CHARACTERISTICS OF THE MAIN PIVOT PLACEMENT MEAN RISE IS AN EFFICIENT PEDALER THAT WON'T SAP YOUR ENERGY IN SUSTAINED EFFORTS
A high starting leverage rate gives a plush and active feel combined with terrific traction. A progressive curve controls the bike in full-travel situations - the inevitable big hits that come along with pointing a capable bike down a rocky trail.

LIGHTER AND SIMPLER
Saves the weight of complex yokes and additional pivot axles and hardware.

EASY HANGER REMOVAL
Allows the derailleur hanger to be replaced by hand in seconds.

STIFFER
Moving the pivot to the rear axle and using the rear thru-axle and rear hub creates a very solid interface.

Geometry

Geometry Chart:
SmallMediumLargeX-Large
1 - SEAT TUBE (C-T) 381 419 457 508
2 - TOP TUBE (EFF) 565 592 619 649
3 - HEAD TUBE 95 105 120 140
4 - CHAINSTAY 445 445 445 445
5 - BB HEIGHT 336 336 336 336
6 - BB DROP* 35/32 35/32 35/32 35/32
7 - WHEELBASE 1180 1205 1229 1255
8 - HEAD ANGLE* 66º/65.5º 66º/65.5º 66º/65.5º 66º/65.5º
9 - SEAT ANGLE* 77º/76.5º 77º/76.5º 77º/76.5º 77º/76.5º
10 - STANDOVER 710 736 766 776
11 - REACH 425 450 474 500
12 - STACK 604 613 627 646
13 - FORK LENGTH 547 547 547 547
RAKE 44 44 44 44
Geometry Chart:
CRANKSTEMHANDLEBARDROPPER SEATPOST
Small 165 45 780 390/125
Medium 165 45 780 440/150
Large 170 55 780 440/150
X-Large 170 55 780 480/170
* The handlebar size is centre-centre

Sizes:
HEIGHT ( CM )HEIGHT ( IN )SIZE
150-165 59.1"-65.0" Small
160-175 63.0"-68.9" Medium
170-185 66.9"-72.8" Large
180-198 70.9"-78.0" X-Large
*Estimated measurements

Specs

Frame Orbea Rise OMR 2021 140mm travel 29" C-Boost 12x148
Fork Fox 34 Float Performance 140 3-Position QR15x110
Rear Shock Fox Float DPS Performance 3-Position Evol custom tune 210x55mm
Wheels Race Face AR 30c Tubeless Ready
Tires Maxxis Dissector 2.40" 60 TPI 3CMaxxTerra Exo TLR
Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR
Crankset e*thirteen Plus Alu
Chainrings e*thirteen e*spec Direct Mount 32T Boost
Shifters Shimano SLX M7100 I-Spec EV
Rear Derailleur Shimano SLX M7100 SGS Shadow Plus
Cassette/Freewheel Shimano CS-M7100 10-51t 12-Speed
Chain Shimano M6100
Brakes Shimano M6100 Hydraulic Disc
Rotors 180mm Front /180mm Rear
Handlebars OC1 35mm 12mm Rise 780mm
Stem OC1 3D Forged 35mm interface 7º
Headset Acros Alloy 1-1/8 - 1-1/2" Integrated
Seatpost OC MC20 Mountain Control Dropper, 31,6mm
Saddle Fizik Taiga S-alloy rail
Pedals Sold separately
Motor Shimano EP8-RS
Battery Orbea RS Internal 360Wh
Controller/Display Shimano EW-EN100 Junction
Charger Orbea RS Charger (36V-2A)

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Coal Blue/Red Gold / Small 08434446958533 M66015YX
Coal Blue/Red Gold / Medium 08434446958564 M66017YX
Coal Blue/Red Gold / Large 08434446958595 M66018YX
Coal Blue/Red Gold / X-Large 08434446958625 M66020YX
Ice Green/Ocean / Small 08434446958526 M66015YW
Ice Green/Ocean / Medium 08434446958557 M66017YW 210000047582
Ice Green/Ocean / Large 08434446958588 M66018YW 210000047583
Ice Green/Ocean / X-Large 08434446958618 M66020YW
Sap White/Green Fog / Small 08434446958519 M66015YV
Sap White/Green Fog / Medium 08434446958540 M66017YV
Sap White/Green Fog / Large 08434446958571 M66018YV
Sap White/Green Fog / X-Large 08434446958601 M66020YV
